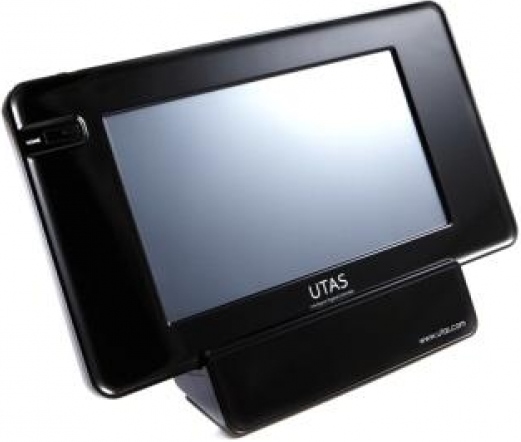

7" Touch Panel Remote Controller - UX7000

More easy and powerful IR learning function by both standalone and interconnected by PC editor

More convenient timer function by touch panel

Naturl user interface PC Editor

More wide range 2.4GHz Zigbee RF operation with unique channel encoding

More flexible database manaement

Possible to support Zigbee or/and WiFi mode

PC Editor for UX7000

Natural user interface

Dedicated RS232 data management

More convenient Relay control

More flexible database management

Hardware Spec of UX7000

Touch Screen : 7 Inches

Display : Color TFT LCD

Display : 65,000 Color

Display : 800 x 480 Pixels

Display : High Brightness Backlight

CPU : 32bit RISC

CPU : 400MHz ARM9 Processor

Memory : 64MB NAND Flash

Memory : 64MB SDRAM

OS : Window CE 5.0

IR Capabilities : Operating Distance : About 30meter

IR Capabilities : Horizontal Range : +/- 50 degrees

IR Capabilities : Vertical Range : +/- 40 degrees

IR Capabilities : IR Transmitter and Receiver

Radio Frequency : Frequency : 2.4GHz

Radio Frequency : Operating Distance : About 100meters (2dB external antenna)

Radio Frequency : Addressable 16 CH

Radio Frequency : Addressable 16 ID

Battery : 4.2V/3250mA Lithium-Polymer

DC Power : 9/2A SMPS DC Adaptor

USB : USB 1.1 Interface

Status LED : Operating and Battery Status

Status LED : High Brightness

Status LED : Color : Blue, Red, Green

Sound : Audio Codel Real Sound

Pick up Sensor : Screen Wake up

Pick up Sensor : Operating Angle : Up/Down 15 degrees

Dimensions : WxDxH (mm) : 230x126x18/21

Dimensions : Weight(g) : 650

Case Color : Black

Software Spec of UX7000

Macro function

Timer function

IR learning fucntion

System setup

PC editor : Customizing UI setup

PC editor : myDB register and management

PC editor : IR learning function

PC editor : IR code database

PC editor : Testing IR / RF

PC editor : Simulator

PC editor : Live update

PC editor : Image Gallery
