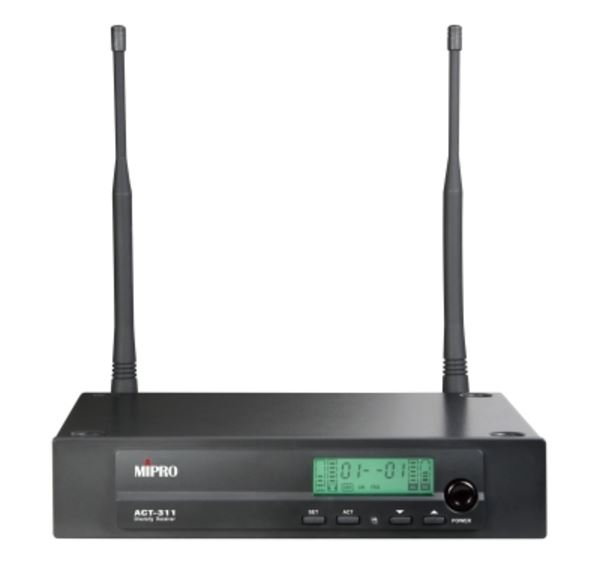

ACT - 311

Specification

Channel	Single
Chassis	EIA-Standard 19" 1/2U
Receiving Mode	Diversity
Frequency Range	UHF 480~934MHz
Antenna	Rear Panel. Detachable.
Preset Channels	112 preset channels. Group 1-6: 8 compatible channels in each group. Group 7-10: 16 compatible channels in each group. Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.
Oscillation Mode	PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)
Sensitivity	10dBμV, at S/N>80dB
S/N Ratio	>106dB(A)
T.H.D.	<0.5% @ 1kHz
Frequency Response	50Hz~18kHz, with high pass filter.
Squelch	"PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level	2-level Switch: Line & Mic
Power Supply	External AC Adapter, 12~15V DC, 1A
Dimensions	210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"
Weight	Approx. 0.8kg / 1.8lbs
Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
