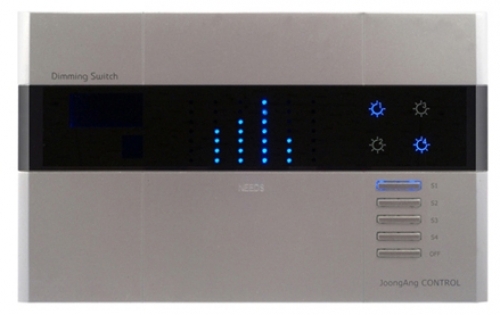

Dimming Switch ( RS485 )

Specifications

Input voltage : AC 110V/220V, 50/60Hz

Dimming function : 4 circuits

On/Off function : 4 circuits

Load Capacity : Dimming circuit 2000W(Max. 1000W each circuit)

Load Capacity : turn on/off circuit 2000W(Max. 500W each circuit)

Dimming Load : Incandescent lamp, Magnetic low voltage halogen lamp

Dimming Load : Fluorescent lamp(W/dimming ballast)

Installation Type : WALL BOX(built-in), built-in box size -A type : 221(W) x 129.2(H) x 62(D)mm

Installation Type : WALL BOX(built-in), built-in box size -B type : 221(W) x 200(H) x 77(D)mm

Option : Interface functions (3circuits RS-485 communication)

Option : Color : White, Ivory, Silver, Champagne gold

Size : 195(W) x 120(H) x 8.5(D)mm

Remote control : Working type : Infra red-ray communication

(Option) : Operating distance : 6m

Remote control : Power supply : 3V, button battery(CR-2025)

Remote control : Size : 45(W) x 90(H) x 7.5(D)mm
