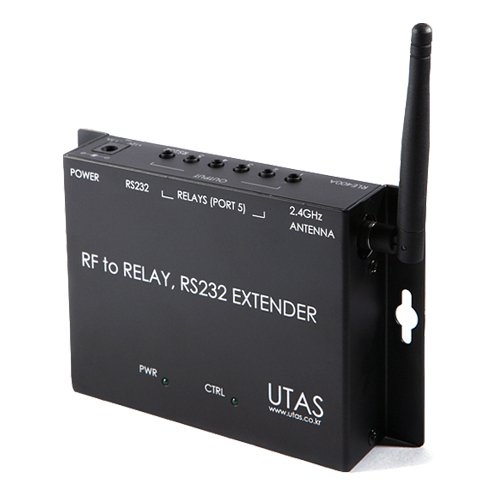

RF to Relay,RS232 Extender - RLE400AD

RLE400AD are RF extenders transmitting contact control cords wirelessly at 2.4GHz and controlling instruments connected with wire by control signals received. Through setting up the integrated controller, users can set up addresses separately and transmit individual contact signal to each relay port. And, RLE400AD can do serial controls with the use of the RS232 port.

Configuration with RLE400AD

Features of RLE400AD

Control Port : 5 Relay Ports, 1 RS232 Port

Port type : 3.5 Audio Jack

CH & ID : Addressable 16 CH, 16 ID

Frequency :2.4GHz

Coverage : About 100meters

Power : 12V/1.5A SMPS DC Adapter

Dimension (mm) : 152.3x93.2x28 (WxDxH)

Weight(g) : 210

Case Color : White / Black
