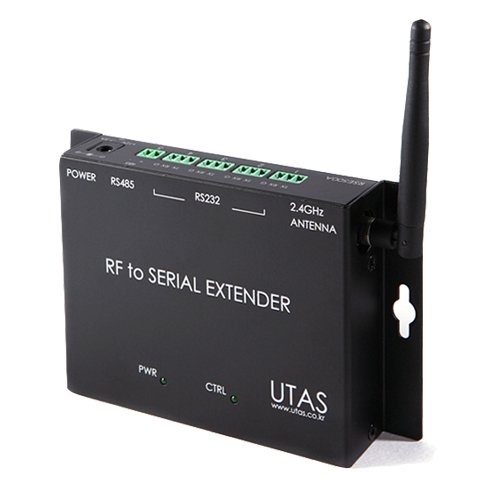

RF to Serial Extender - RSE500AD

RSE500AD is a RF extender receiving the control cords of RS232 and RS485 at 2.4GHz wirelessly and controlling instruments connected with wire. Through setting up the integrated controller, it can send signals 4 RS232 ports and 1 RS485 port and do control with the use of each serial port by setting up addresses separately. It provides 16 channels to prevent frequency jamming and can identify 256 IDs.

Configuration with RSE500AD

Features of RSE500AD

Control Port : 4 RS232 Ports, 1 RS485 Port

Port type : Plug-in Terminal Block

CH & ID : Addressable 16 CH, 256 ID

Frequency :2.4GHz

Coverage : About 100meters

Power : 12V/1.5A SMPS DC Adapter

Dimension (mm) : 152.3x93.2x28 (WxDxH)

Weight(g) : 190

Case Color : White / Black
