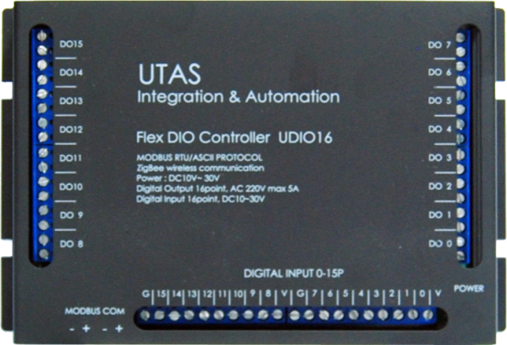

◆ Main Features
· Detection of digital input signals (Basic 7 V – 30 V,
During simultaneous separate work, 5 V and dry contact
are possible.)
· Relay 16 point control
· RS485 (Modbus) communication

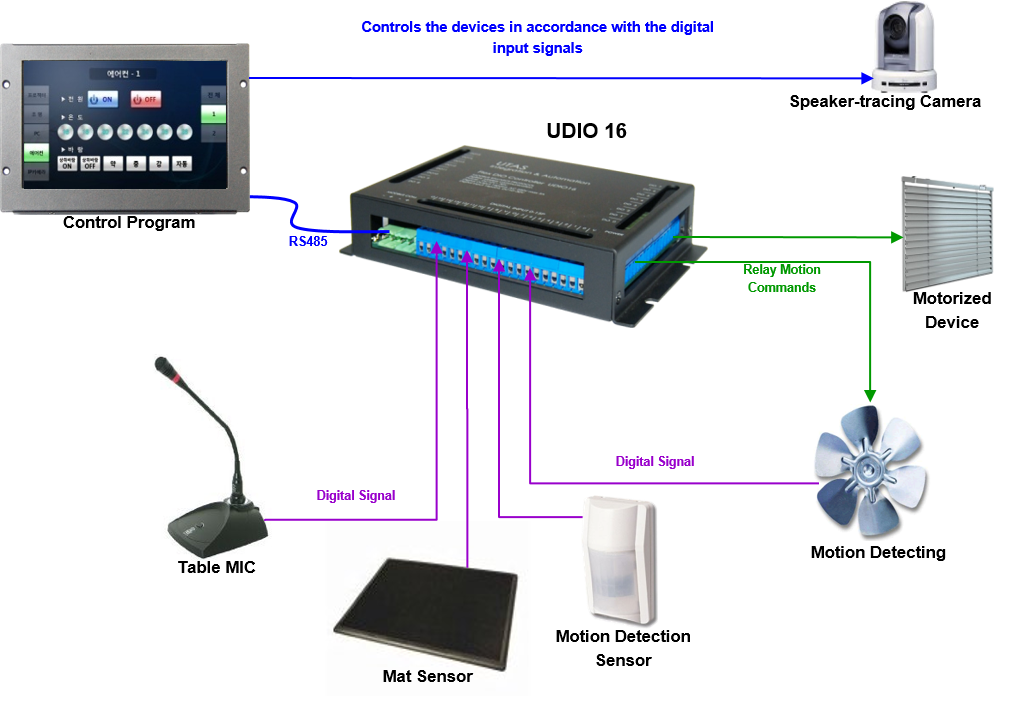

· Applicable in various ways in accordance with the control programs
· A maximum of 64 units can be connected for use, differentiating IDs
◆ Main Specifications
· Input Port: 16 digital in ports
· Output Port: 16 relay out ports (8 ports each in the right and left side)
· 2 RS485 ports for communication
· Power Supply: 12 V / 1.5 A SMPS DC adapter
