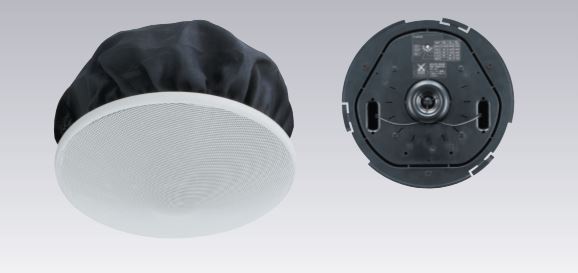

F - 2352SC

F-2352SC (12cm cone) Perfect for low power use, this speaker has increased cost-effectiveness. (recommended 2 to 4m)

•Because there is no back can, it can be mounted in ceilings even having minimal depth.

•Equipped with a diffuser for wide dispersion of high frequencies.

Specification

Rated Input

6 W (High Impedance)

Power Handling Capacity

Continuous pink noise: 9 W (8 Ω), 6 W (16 Ω)
Continuous program: 18 W (8 Ω), 12 W (16 Ω)

Impedance

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 20 kΩ (0.5 W)
70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W),
20 kΩ (0.25 W)
25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W),
20 kΩ (0.03 W)
16 Ω, 8 Ω

Sound Pressure Level

89 dB (1 W, 1 m)

Frequency Response

80 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)

Speaker Component

High frequency: Balanced dome-type
Low frequency: 12 cm cone-type

Mounting Hole

φ200 mm (Maximum ceiling thickness: 37 mm)

Input Terminal

Push-in connector (Bridging terminal-2 branch type)

Usable Cable

600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG No. 20 - 15)
7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG No. 18- 17)

Finish

Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dust-proof bag: Artificial fiber, black

Dimensions

φ230 × 154 (D) mm

Weight

1.5 kg (including panel)

Accessory

Panel …1, Paper pattern …1

Option

Back can: HY-BC1
Reinforcement ring: HY-RR2
Anchor hanging bracket: HY-AH1 (HY-RR2 required)
Tile bar bridge: HY-TB1 (HY-RR2 required)
Trim ring: HY-TR1 (HY-RR2 required)
