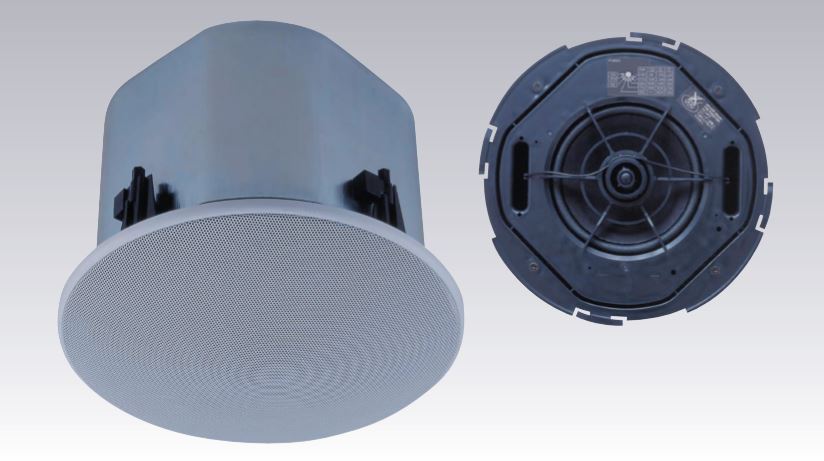

F-2852C

F-2852C (16cm cone) Designed for higher power (60W) applications in locations having higher ceilings that are in the range of 3 to 6 meters. •Equipped with back can meeting heat-resistant specifications. •Equipped with a diffuser for wide dispersion of high frequencies.

Specification

Enclosure

Bass reflex type

Rated Input

60 W (High Impedance)

Power Handling Capacity

Continuous pink noise: 90 W (8 Ω), 60 W (16 Ω)
Continuous program: 180 W (8 Ω), 120 W (16 Ω)

Impedance

100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
25 V line: 83 Ω (7.5 W), 170 Ω (3.7 W), 330 Ω (1.9 W), 670 Ω (0.9 W), 3.3 kΩ (0.2 W)
16 Ω, 8 Ω

Sound Pressure Level

91 dB (1 W, 1 m)

Frequency Response

60 Hz - 20 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)

Speaker Component

High frequency: Dome-type, Low frequency: 16 cm cone-type

Mounting Hole

φ250 mm (Maximum ceiling thickness: 37 mm)

Input Terminal

Removable locking connector with screw-down terminals
(2 input terminals and 2 bridge terminals)

Usable Cable

Solid copper wire: φ0.5 - φ1.6 mm (equivalent to AWG No. 24 - 14)
Stranded copper wire: 0.2 - 2.5 m㎡ (equivalent to AWG No. 24 - 14)

Finish

Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint

Dimensions

φ280 × 227 (D) mm

Weight

5.1 kg (including mounting accessories)

Accessory

Panel ……1, Ceiling reinforcement ring ……1, Safety wire ……1, Paper pattern …1

Option

Anchor hanging bracket: HY-AH1, Tile bar bridge: HY-TB1
